Pure Science. Proven Compliance.

Master your filtration with W.S. Tyler’s Sustainable Advanced Woven Mesh.

Clean, sustainable, and safe filtration is essential in the pharmaceutical industry, where every process depends on maintaining product purity and meeting strict regulatory standards. Our solutions make achieving this level of cleanliness and compliance easier, supporting pharma manufacturers with reliable systems built to uphold the highest expectations for safety, consistency, and sustainability.

Engineered Precision, Patient‑Safe Results:
Transforming Pharmaceutical Filtration and Fluidization with Custom Wire Mesh

Porostar-Filter-Plate-Collage
Our precision‑woven wire mesh chromatography frits ensure consistent flow distribution and reliable retention, supporting accurate separations across sensitive pharmaceutical processes. Built for purity, durability, and chemical resistance, they help maintain system cleanliness while meeting the industry’s rigorous performance demands.
nutsche-dryer-porostar-compliance
Engineered for high‑purity solid‑liquid separation, our sintered multi‑layered nutsche filters deliver superior strength, uniform permeability, and long‑term stability. Their robust, cleanable construction supports stringent regulatory expectations while maximizing process reliability and product safety.
PLYMESH-Bin-Aeration-Pad
Designed to deliver controlled, uniform airflow, our wire mesh laminate fluidization beds and aeration pads ensure smooth powder movement and optimized material handling in pharmaceutical production. Their multi‑layered, contamination‑resistant structure promotes consistent performance and cleanliness. This is key to safe, compliant operations.

Filtration‑Driven Engineering, Tailored to Your System

Whether you supply exact specs or a process challenge, our engineers analyze the operating environment and define the mechanical, thermal, and permeability requirements. Based on this, we pinpoint a precise mesh specification, selecting the weave type, pore structure, and number of layers needed for your filtration task.

Samples can be made available to verify flow, retention, and mechanical stability. We refine the design through data‑driven iterations until the solution aligns with all application demands.

Information Needed To Get Started

Operating Environment & Application Demands

A successful filter design begins with a complete understanding of the operating environment. Key parameters include:

  • Operating pressure (steady-state and transient)

  • Temperature ranges

  • Required flow rate or throughput

  • Exposure to aggressive chemicals or solvents

  • Cleaning or sterilization methods (CIP/SIP, autoclave)

These conditions directly influence mesh stability, laminate integrity, and long-term performance. For example, high differential pressures may require reinforced laminates, while repeated thermal cycling or chemical exposure demands materials and bonding technologies that resist fatigue, corrosion, and delamination. Defining the real-world process conditions upfront ensures the filter maintains consistent performance, cleanliness, and service life throughout its operating cycle.

Layer Configuration & Structural Design

The laminate structure determines how strength, flow, and efficiency are balanced. Single-layer constructions may be suitable for coarse filtration or support applications, while multi-layer laminates enable precise pore control, higher dirt-holding capacity, and improved mechanical stability.

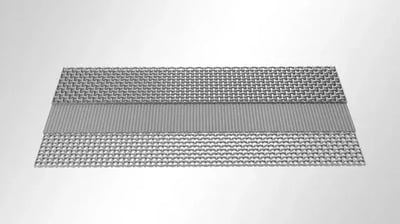

POROSTAR_Light

POROSTAR Light

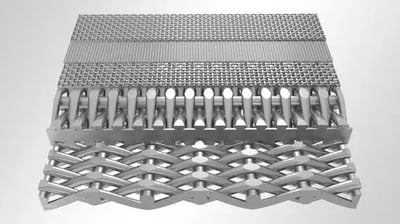

 POROSTAR_Standard

 POROSTAR Standard

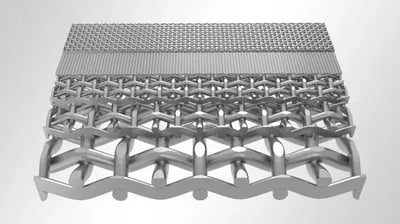

POROSTAR_HIFLO

 POROSTAR HiFlo

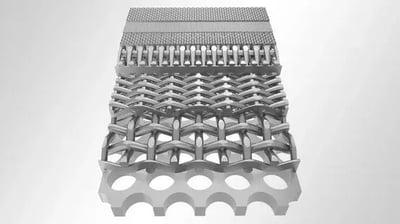

 POROSTAR_COMBI

 POROSTAR Combi



Selecting the appropriate POROSTAR® configuration, such as the Light specification when fabrication calls for smaller component diamters, the Standard specification to handle unbalanced loads, the COMBI specification for balanced strength and permeability, the HIFLO specification for maximum flow and low pressure drop, or one of our PLYMESH® configurations for high-performing fluidization, allows the filter to meet demanding performance targets without overengineering. Proper layer sequencing also improves cleanability, prevents premature blinding, and ensures structural integrity under process stress.

Material Selection

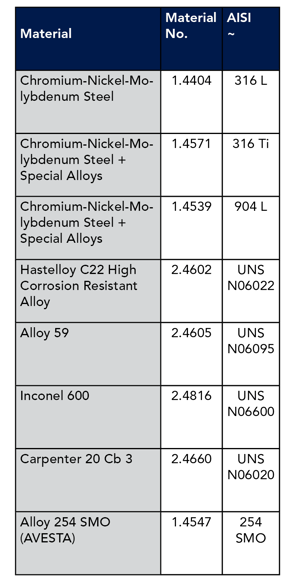

POROSTAR Alloy List

Material choice is critical to ensuring chemical compatibility, mechanical reliability, and regulatory acceptance. Alloys must withstand process media, sterilization cycles, operating temperatures, and applied stresses while maintaining pore stability and surface quality.

Common selections such as 316L stainless steel support a wide range of pharmaceutical applications, while 904L, Hastelloy®, or other high-performance alloys may be required for aggressive chemistries, elevated temperatures, or extended service intervals. The right material minimizes corrosion risk, extractables, and contamination while supporting repeatable, validated performance.











Required Certifications & Compliance

Pharmaceutical and medical technology applications often require stringent documentation and traceability. Early identification of required certifications ensures alignment with quality and regulatory expectations, such as GMP-aligned documentation, full material traceability, heat and lot tracking, material test reports (MTRs), and process validation support.

Understanding these requirements at the design stage avoids delays during qualification and scale-up, enabling smoother integration into validated systems and regulated production environments.

Filtration Requirements

Filtration performance is defined by the details. To engineer a filter layer that performs consistently and predictably, we evaluate parameters such as target micron rating, weave type, wire diameter, laminate thickness, number and order of layers, and whether the design emphasizes surface or depth filtration.

Each of these variables directly impacts particle retention efficiency, flow rate, pressure drop, cleanability, and service life. By aligning these specifications with your process goals, whether purity, throughput, or durability, we ensure the wire mesh laminate is precisely engineered to meet your filtration performance and contamination control standards.

Surface Treatments & Finishing Options

Assess whether surface finishing processes like passivation, pickling, electropolishing, or other treatments are needed to improve corrosion resistance, cleanability, or long‑term durability in pharmaceutical environments.

Pickling vs. Passivation

Pickling

An aggressive chemical cleaning process used to remove oxide scale, heat tint, weld discoloration, rust, and other contaminants introduced during welding, forming, or fabrication. It uses acid solutions, typically nitric plus hydrofluoric acid, to strip away these surface impurities and restore a clean, uniform stainless‑steel surface capable of naturally reforming its protective chromium‑oxide layer. Pickling is essential when wire mesh components show discoloration, contamination, or weld‑affected zones, ensuring all residues are eliminated before subsequent treatments.



Passivation

Performed after pickling or mechanical cleaning, passivation is a non‑destructive chemical treatment that removes free iron from the steel surface and enhances the formation of the chromium‑rich passive film responsible for corrosion resistance. Using nitric or citric acid solutions, passivation does not remove scale or oxide but strengthens the material’s long‑term resistance, critical for pharmaceutical and hygienic applications. It is often required for components exposed to corrosive environments and is aligned with standards.

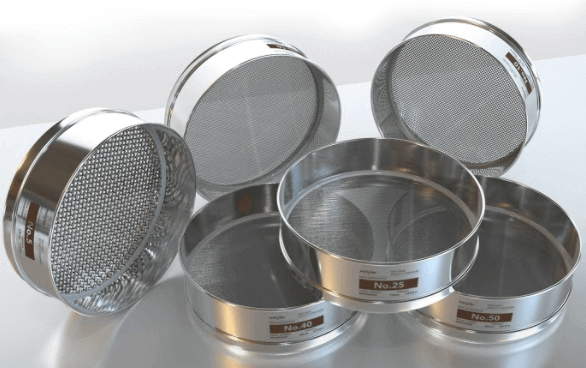

Matched-Test-Sieve

Looking for test or granulating sieves?

For critical pharmaceutical and laboratory testing applications, your results are only as reliable as the sieves you use. Our test and granulating sieves deliver uniformity, repeatability, and regulatory confidence for QC labs and production teams.

Precision Wire Mesh Frits for Consistent Chromatography Performance

Woven and sintered mesh frits provide the flow uniformity and pore stability required to maintain sharp separation profiles and reliable column performance. Engineered for chemical compatibility and durability, they minimize band broadening and keep your process running smoothly.

Learn More →
Woven-Wire-Chromatography-Filter-Plate

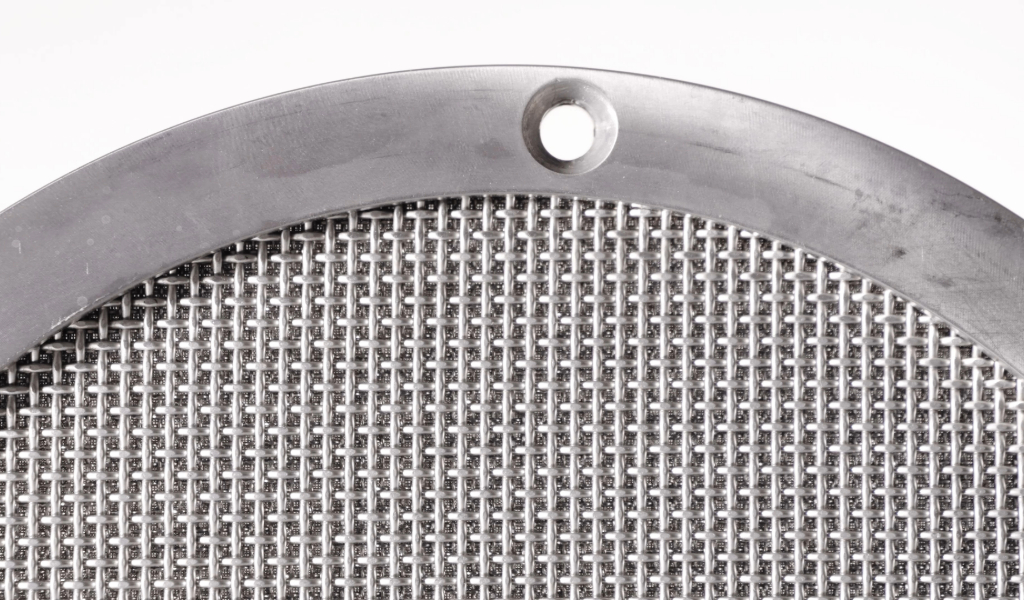

porostar-nutsche-filtration

Nutsche Filter Screens Built for Purity & Performance

Multi‑layered sintered mesh plates deliver the pore precision, rigidity, and cleanability needed to drive consistent API isolation and filtration. Our engineered solutions help you reduce downtime, improve product recovery, and maintain compliance across every batch.

Learn More →

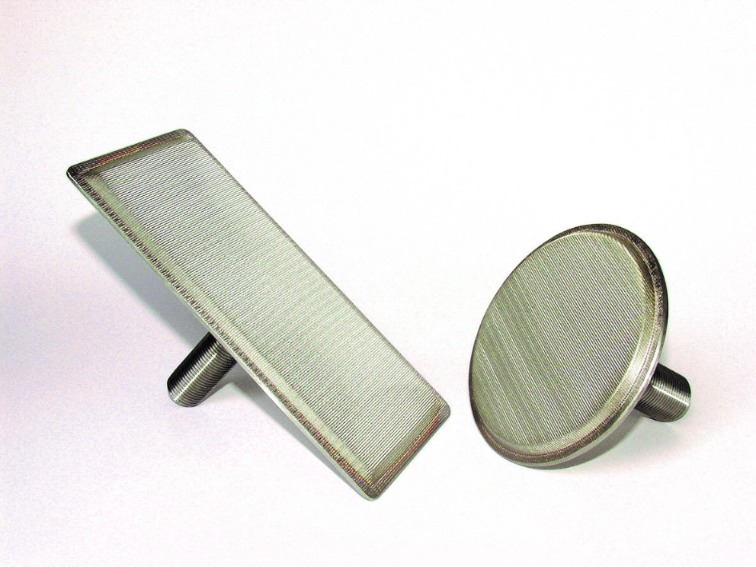

Reliable Mesh Aeration Pads for Smooth, Controlled Fluidization

Sintered mesh aeration pads ensure uniform airflow that prevents channeling, bridging, and inconsistent powder movement in critical API handling steps. Designed for stability under thermal and mechanical stress, they support predictable, repeatable processing every time.

plymesh-silo-aeration-pad

See What’s Inside A
High-Performing Nutsche Filter

In Nutsche filtration, everything begins with the media beneath your product. The engineered layers inside a POROSTAR® sintered mesh panel, such as protective layers, precision filtration layers, diffusion layers, and drainage support, work together to deliver consistent flow, pore stability, and cleanability.


Get to know each layer and how choosing the right layer configuration can improve product recovery, reduces downtime, and ensures repeatable batch performance.

rpd-hiflo-water
Single-Layer Configurations

Single‑layer wire mesh filters offer a simple, predictable filtration solution defined by one woven structure. Filtration occurs at a single plane, resulting in low pressure drop, stable flow, and straightforward cleanability.

The open construction supports higher throughput and efficient backflushing, making it well suited for coarser filtration, frequent cleaning cycles, or processes with limited differential pressure allowance.

Because retention is primarily surface‑based, dirt‑holding capacity is limited, and service life may be reduced in applications with fine particles or high solids loading. Structural reinforcement may be required as operating pressures increase.

Single‑layer designs are best matched to processes prioritizing flow efficiency, accessibility, and mechanical simplicity.
Multi-Layer-Wire-Mesh-Diagram

Multi‑Layer Mesh Laminate Configurations

Multi‑layer wire mesh laminates are engineered to combine precise particle retention with structural stability and extended service life. Multiple layers with varying pore sizes distribute particle loading through the laminate thickness.

Fine filtration layers deliver controlled retention, while support layers maintain permeability and strength. This results in higher dirt‑holding capacity, more consistent pressure drop over time, and improved resistance to pressure and thermal cycling.

Laminate architecture can be tailored for surface, depth, or hybrid filtration, enabling application‑specific performance across demanding pharmaceutical and chemical processes.

Multi‑layer configurations are best suited where filtration accuracy, durability, and long‑term consistency are critical.

Challenges Woven Wire Mesh Can Solve

favicon

Zero‑Shedding Filtration for Batch‑Critical Processes
Traditional filter media can contaminate your product with shed fibers or plastic particles, risking patient safety and batch loss. Sintered wire mesh panels eliminate shedding entirely, helping you protect purity and meet zero‑defect pharmaceutical standards with confidence.

favicon

The "Heel" Recovery Problem in Nutsche Filters
In API isolation, a residual “heel” of product often remains on the filter, and flexible or wrinkle‑prone media prevent the agitator from sweeping close enough to recover it. Because APIs can cost thousands per gram, reclaiming even an additional 1% of this material can translate into substantial annual revenue gains.

favicon

Mechanical Failure Under High Shear (Agitator Strikes)
A torn screen can shut down the entire vessel for decontamination and replacement, causing days of production downtime and potentially millions in lost revenue. The rigidity of sintered mesh prevents the agitator from striking the filter surface, protecting costly mechanical seals and shafts from accidental damage.

favicon

Cleaning-In-Place (CIP) & Cross-Contamination
Non‑woven or cloth filters trap particles deep within their fibers, making them nearly impossible to clean completely and increasing the risk of cross‑contamination between batches. Because sintered mesh provides true surface filtration, it enables verifiable cleaning and gives facilities the confidence to switch between products without residual carryover.

favicon

Corrosive Chemical and Thermal Integrity
Pharmaceutical synthesis often involves harsh solvents, fuming acids, and high‑chloride environments that quickly corrode standard stainless steel. By using corrosion‑resistant alloys like Hastelloy C‑22, sintered mesh prevents rouging, protects product purity, and maintains its micron rating for years instead of months.

favicon

Flow Distribution & Channeling deterant
In chromatography, inconsistent frit porosity causes uneven flow, leading drug bands to broaden and overlap as they move through the column. Uniform, precision‑woven frits maintain consistent flow distribution, producing tighter bands and higher‑purity fractions of biologics and peptides.

POROSTAR-Alloy-Selection-WP

Optimize POROSTAR® Performance With the Right Alloy

Built for Precision. Trusted in Countless Applications.

Explore how the right alloy choice unlocks the full performance potential of POROSTAR® sintered wire mesh and achieve optimal filtration precision, durability, and operational efficiency.

Access the <span style="text-decoration: underline;">Free</span> White Paper

Frequently Asked Questions

How do multi‑layered sintered mesh panels help reduce downtime in daily batch operations?

Multi‑layered sintered mesh panels are engineered to withstand the exact stresses operators deal with every day such as, agitation cycles, heel removal, solvent washes, and repeated thermal swings. Their diffusion‑bonded layers eliminate mesh shifting, screen fatigue, and tearing, meaning operators don’t have to stop mid‑batch to replace a failed screen or re‑level a warped surface.


The rigid construction also keeps pore geometry stable, ensuring predictable flow and consistent filtration performance across every run. While traditional woven wire mesh is still used for peripheral screening tasks, sintered laminates remove the maintenance guesswork, allowing operators to stay focused on throughput instead of troubleshooting screens.

Why are sintered mesh Nutsche filter plates easier for technicians to clean between batches?

Technicians constantly battle powders that cling, pack, or wedge into filter media. With cloth or felt, these particles embed deep within fibers, making cleaning slow, labor-intensive, and never fully verifiable. Sintered mesh eliminates this issue with a smooth, consolidated surface layer that keeps all retained material on the top of the media.


During CIP or manual cleaning, residue lifts off quickly and validation is far more reliable, reducing the risk of cross-contamination in multi-product facilities. Standard woven mesh can assist with visual inspections or venting, but sintered plates dramatically cut cleaning time and provide confidence that the filter is truly clean before the next batch is released.

How does sintered mesh improve solvent handling and chemical resistance during routine synthesis steps?

Everyday pharmaceutical synthesis exposes filtration media to aggressive solvents, acids, chlorides, and high-pH cleaning solutions. Sintered mesh offers uniform corrosion resistance across all bonded layers, helping prevent weak points that can develop in traditional layered assemblies.

This means operators don’t have to constantly monitor for localized pitting, rouge formation, or weld failures, issues that can compromise batch purity and create unplanned downtime. Woven mesh remains useful for low-risk tasks, but chemically demanding stages almost always benefit from the strength and stability of sintered multi-layer construction.

What advantages do sintered mesh screens offer during fluid bed drying and granulation tasks?

In fluid bed drying, consistency is everything, from consistent airflow, consistent product movement, to consistent moisture content. Multi-layered sintered mesh panels deliver even porosity and rigid mechanical strength, preventing sagging or deformation that could disrupt airflow patterns.


Because FBD bowls operate under continuous vibration and thermal load, operators value screens that don’t distort, stretch, or shed particulates into the product. Sintered panels maintain their shape batch after batch, directly contributing to predictable drying profiles and reduced variability in granule quality.



Standard woven mesh may work as an auxiliary or replacement layer, but sintered constructions remain the gold standard for primary FBD screens.

Can sintered mesh be customized for process-specific filtration or flow challenges?

Yes! This is where sintered laminates truly excel. Engineers can tailor each layer to meet the daily demands of the process:

  • Protective layers to prevent abrasion from crystals or solids
  • Filtration layers with precise pore ratings
  • Diffusion layers that maintain flow uniformity
  • Drainage/support layers to manage pressure and mechanical load

This level of customization allows manufacturers to optimize pressure drop, flow rate, retention, chemical compatibility, and cleanability all at once. Traditional woven mesh still plays a role in secondary screens or protective housings, but critical filtration components almost always benefit from engineered laminate designs that remove process variability and operator burden.

Explore Wire Mesh Solutions for Cleaner, Safer Pharmacuticals
